MANUFACTURING PROCESS
Investment Casting
Near-net-shape investment castings for complex steel components, reviewed from drawing and material selection through tooling, sampling, machining, inspection and repeat production.
Investment casting can produce detailed near-net shapes, but achievable tolerance depends on alloy, size, geometry, datum structure and feature location. Identify only function-critical tolerances for engineering review; tighter fits may require machining.
The process is commonly used for repeat production where tooling cost is distributed across the program. Printed or machined patterns may support selected prototype or low-volume evaluation; production demand normally uses wax-pattern tooling.
Repeat production normally requires wax-pattern tooling plus any machining fixtures, gauges or inspection fixtures. Tool design approval, revision, ownership, expected life, maintenance and storage should be defined in the quotation.
PROCESS OVERVIEW
How this process supports the part requirements.
Investment casting, also called lost-wax casting, begins with a wax pattern assembled to a feeding system. Repeated ceramic slurry and stucco layers form a shell; the wax is removed, metal is poured, and the solidified casting is separated, cleaned and finished.
The process is often considered when a part combines complex geometry, detailed features, difficult-to-machine alloys or an opportunity to replace a multi-part fabrication. Final suitability depends on annual demand, alloy, section transitions, internal passages, casting integrity, machining and inspection scope.
Wall thickness and transitions
Use practical, reasonably uniform sections and gradual transitions where possible to reduce hot spots, shrinkage risk and distortion.
Fillets and internal corners
Appropriate radii support wax-tool durability, shell integrity, metal flow and more uniform solidification.
Datums and machining stock
Identify critical datums, sealing faces, fits, threads and stock allowances so casting and machining plans remain aligned.
Cores and internal passages
Core support, accessibility, removal, wall verification and inspection must be evaluated before tooling.
Gates and visible surfaces
Mark surfaces where gate vestiges, grinding or appearance variation is restricted so finishing can be planned.
Casting integrity
Pressure boundaries and highly loaded zones require defined acceptance criteria rather than an assumption of defect-free material.
CAPABILITY & PROJECT GUIDANCE
Confirm the production basis before quotation.
Published ranges are guidance only. Final capability depends on part geometry, material, tolerance allocation, tooling and inspection scope.
| Parameter | Value / Range | Unit |
|---|---|---|
| Primary process | Lost-wax investment casting with ceramic-shell molding | |
| Typical material families | Stainless, carbon and alloy steels; other alloys by review | |
| Dimensional basis | Drawing-specific; critical datums and features reviewed before quotation | |
| Secondary machining | Turning, milling, drilling and project-specific finishing | |
| Production route | Tooling, sampling, approval and repeat production | |
| Quality basis | Material, dimensions, appearance and records agreed by project |
Size / Weight
Part envelope and unit weight are reviewed case by case because alloy, section thickness, shell handling, gating yield and finishing route affect practical limits. Submit 2D/3D data and target weight for confirmation.
Tolerance
Investment casting can produce detailed near-net shapes, but achievable tolerance depends on alloy, size, geometry, datum structure and feature location. Identify only function-critical tolerances for engineering review; tighter fits may require machining.
Production Volume
The process is commonly used for repeat production where tooling cost is distributed across the program. Printed or machined patterns may support selected prototype or low-volume evaluation; production demand normally uses wax-pattern tooling.
Tooling
Repeat production normally requires wax-pattern tooling plus any machining fixtures, gauges or inspection fixtures. Tool design approval, revision, ownership, expected life, maintenance and storage should be defined in the quotation.
MATERIALS & PART TYPES
Match the process with material and function.
Applicable materials
Suitable part types
Stainless steel is commonly considered for corrosion resistance, cleanability and process equipment. Carbon steel can balance strength, machinability and cost where corrosion protection is defined. Alloy steel may be selected for heat-treatment response, wear or higher mechanical demands.
State the complete grade, standard and delivery condition. Equivalent designations are not automatically interchangeable; chemistry, product specification, heat treatment, mechanical requirements and documentation must be compared.
Valve bodies, discs and bonnetsFlow paths, sealing features, pressure duty and corrosion requirements are reviewed with machining datums and inspection scope.
Pump impellers and housingsDetailed hydraulic geometry may be combined with machining, balance-related features and project-specific integrity requirements.
Industrial machinery componentsLevers, brackets, supports and housings where complex geometry or part consolidation can reduce fabrication and machining.
Agricultural and construction partsRepeat components requiring practical material selection, wear review, machining and surface protection.
Marine and process hardwareComponents reviewed for corrosion exposure, load path, surface condition and material traceability.
Complex machined castingsNear-net cast forms followed by controlled machining of bores, threads, sealing faces and assembly interfaces.

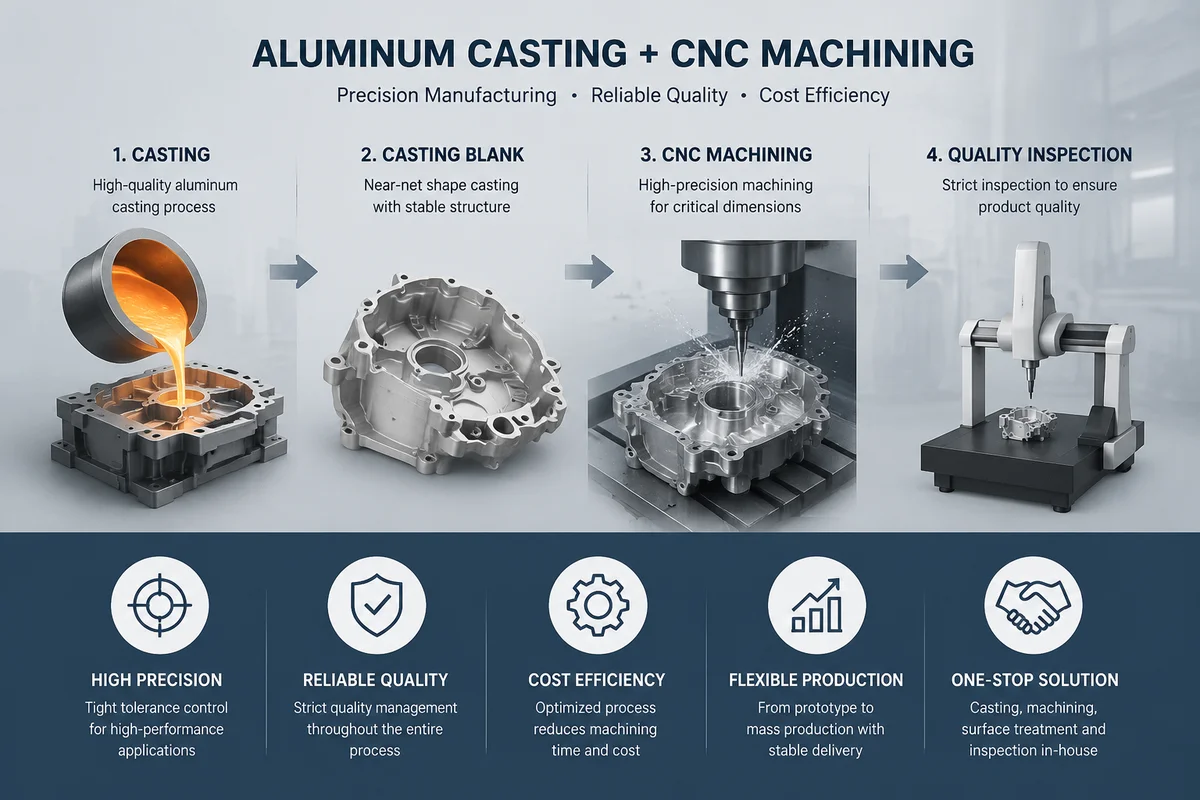

CONNECTED OPERATIONS & QUALITY
The primary process is one part of the production route.
Available operations, inspection methods and documents are confirmed according to the drawing and quotation scope.
Secondary operations
- Gate removal and blendingRemoval limits follow functional and cosmetic surface requirements.
- Surface cleaning and blastingSelected for alloy, required surface condition and downstream finish.
- Heat treatmentCycle and acceptance follow the material specification and property requirements.
- CNC machiningCritical interfaces are machined from released drawings and defined datums.
- Polishing and passivationScope depends on alloy, appearance, cleanliness and corrosion requirements.
- Coating or platingSystem, masking, thickness and testing are confirmed per project.
Inspection & documentation
- Material verificationGrade, chemistry records and certificates are agreed before production.
- Visual and dimensional inspectionCritical features, sampling and reporting format follow the drawing.
- Hardness or mechanical testingMethod, specimen location and acceptance criteria must be specified.
- Non-destructive testingPT, MT, RT or UT scope is reviewed when method and acceptance standard are defined.
- First-article reportingSamples, dimensions, material records and deviations can be documented before release.
- Batch traceabilityHeat, lot and process identity are maintained to the agreed project level.

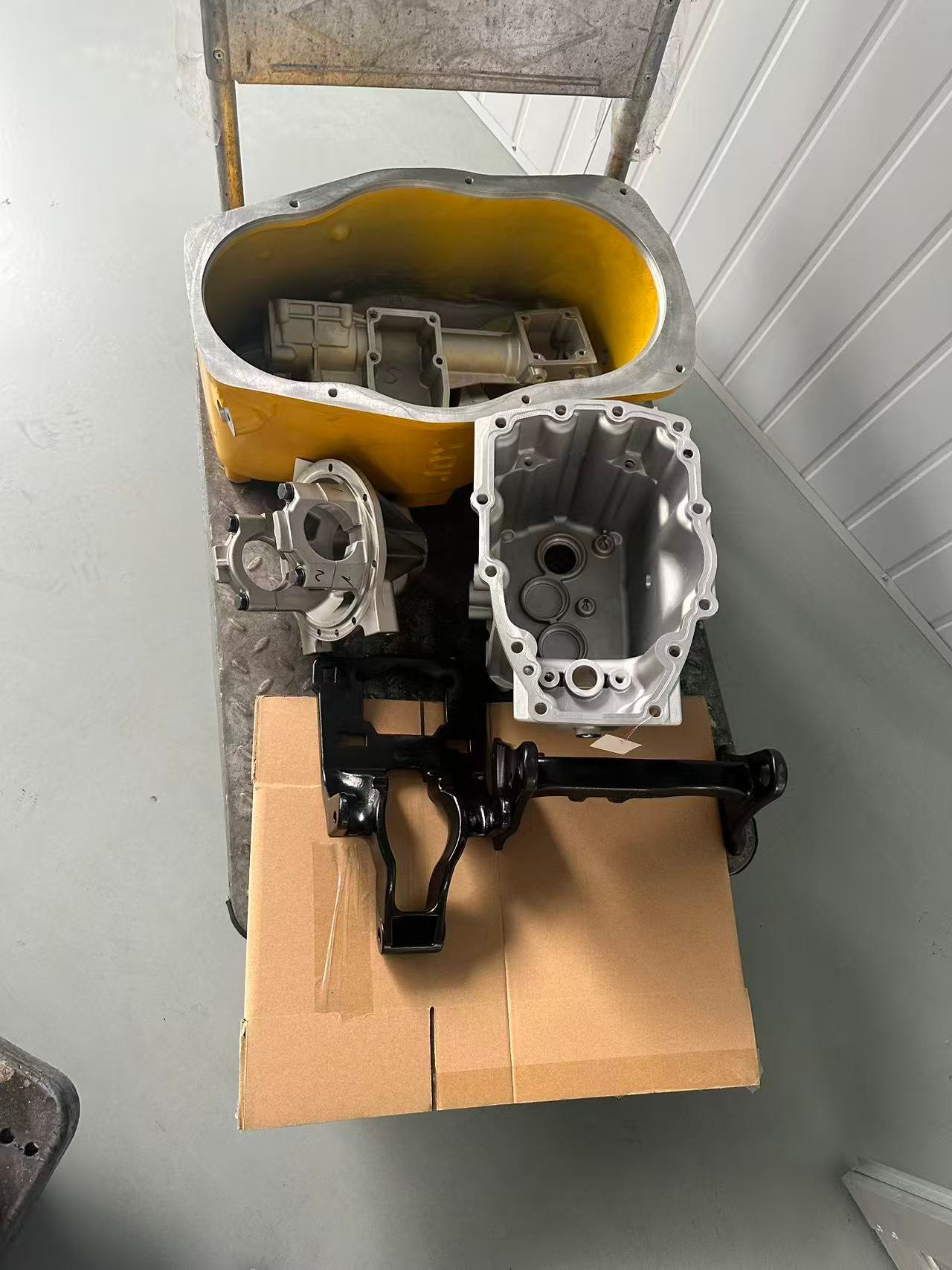

PROCESS & PART GALLERY
Verified manufacturing and component images.
Use real process, equipment, sample and production images to support capability claims.
RELATED CASE STUDIES
See the process connected to real part requirements.
Cases provide context for material, engineering decisions, inspection and project outcomes.
PROCESS FAQ
Questions to clarify before quotation.
Final answers depend on the drawing, material, quantity and application requirements.
When should investment casting be considered?
It is a strong candidate for complex geometry, detailed features, hard-to-machine alloys or part consolidation. Volume, tooling, tolerance, integrity and total cost still require review.
Which materials can be investment cast?
Stainless, carbon and alloy steels are common starting points. Exact grade, melting route, heat treatment, quantity and inspection must be confirmed.
Can castings be supplied machined?
Yes, when machining datums, stock, fixtures, critical features and inspection are included in the released project scope.
What tolerances are possible?
Tolerance depends on size, alloy, geometry, datum structure and feature location. Critical fits are reviewed individually and may require machining.
Is tooling required for prototypes?
Production normally uses wax tooling. Printed or machined patterns may be evaluated for selected prototype or low-volume projects.
What is needed for quotation?
Provide 2D/3D data, material specification, critical requirements, quantity, annual demand, finish, inspection documents and application conditions.
