Is Investment Casting Right for Pumps and Valves?
Investment casting can suit complex pump and valve components, but sealing faces, bores, threads, material suitability and inspection scope still require drawing-specific review.
01Near-net shape does not eliminate machining on sealing and assembly interfaces.
02Material suitability must be confirmed against media, pressure, temperature and governing standards.
03Very large, simple or low-volume parts may fit another manufacturing route better.
On this page
Designing fluid handling systems is stressful when component failure means disastrous leaks or system downtime. Choosing the wrong manufacturing process often leads to costly machining rework, hidden porosity issues, or total part scrap. Evaluating investment casting for pumps and valves early in your project ensures better manufacturability, lower costs, and long-term reliability.

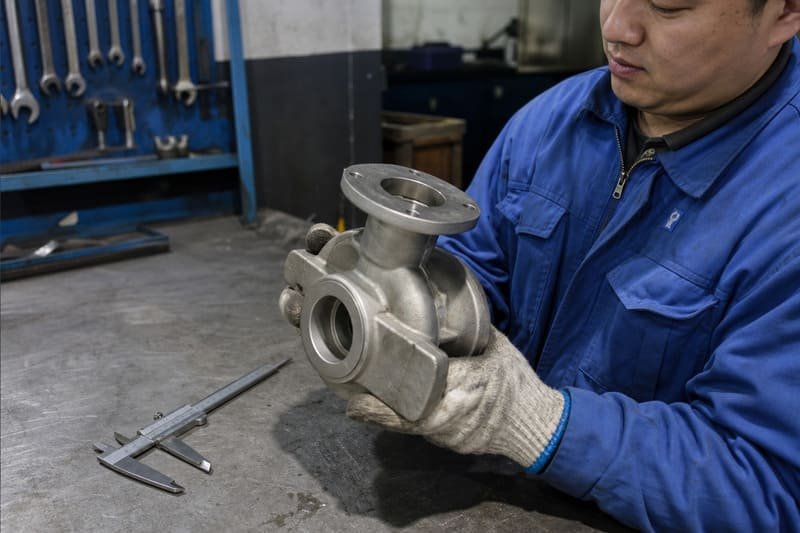

Investment casting for pumps and valves is a precision manufacturing process ideal for complex geometries like impellers, valve bodies, and fluid housings. It offers excellent surface finish and dimensional accuracy for intricate internal channels, but critical sealing faces and threaded interfaces still require dedicated CNC machining for final assembly.
I review technical drawings from OEM engineers and procurement teams every single day. Let us break down exactly how our engineering team evaluates whether this casting process fits your specific component, and where the real manufacturing risks hide.
Why consider investment casting for pumps and valves?
You need complex internal fluid channels, but traditional sand casting leaves surfaces far too rough. This roughness creates fluid friction, which ultimately lowers pump efficiency and wastes energy.[1] Investment casting solves this problem by delivering smooth, accurate internal features directly from the ceramic shell mold.
The primary advantage of investment casting for pumps and valves is its ability to produce complex, near-net-shape geometries with superior surface finishes.[2] This process handles intricate internal cavities, thin walls, and difficult-to-machine alloys much better than forging or sand casting, which reduces overall manufacturing waste.
The Advantage of Geometric Freedom
Investment casting starts with a sacrificial wax pattern.[3] Because we melt the wax out of the ceramic mold before pouring the metal, we do not have to worry about traditional mold drafting limitations that plague sand casting or die casting. This freedom is essential for fluid handling parts.

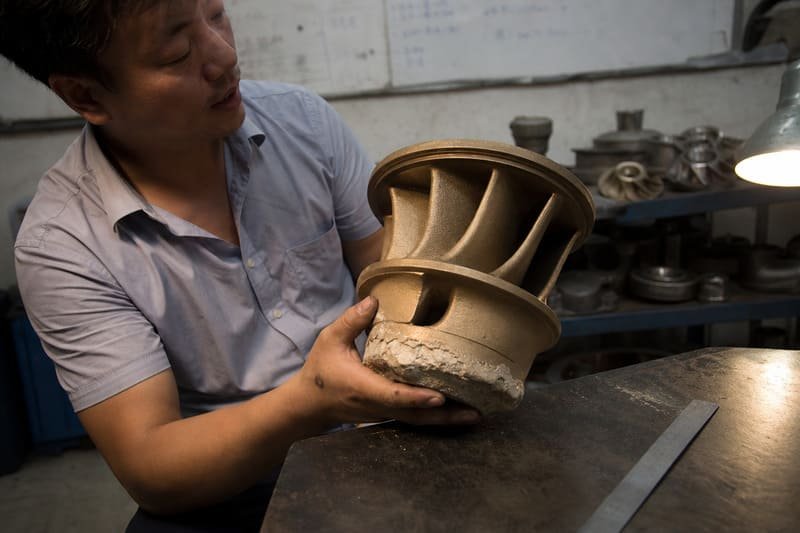

I remember looking at a 3D model for a closed-vane pump impeller last year. The sourcing engineer originally wanted to machine it from a solid block of stainless steel. I had to point out that standard CNC tooling access for those internal, curving fluid channels was physically impossible. Investment casting was the only viable way to form the internal geometry while keeping the outer profile perfectly balanced.
Surface Finish and Fluid Dynamics
For pump and valve components, surface finish directly impacts flow efficiency. Sand casting typically yields a rough surface (Ra 12.5 to 25 micrometers). Investment casting consistently achieves a much smoother finish (Ra 3.2 to 6.3 micrometers).[4] Smoother walls mean less turbulence and higher pump efficiency.
Process Comparison Table
Procurement managers should weigh these standard factors when evaluating processes:
| Feature | Investment Casting | Sand Casting | CNC Machining from Solid |
|---|---|---|---|
| Internal Channels | Highly complex, smooth | Moderate, rough surface | Limited by tool access |
| Tooling Cost | Moderate (Wax injection mold) | Low to Moderate | None (but high part cost) |
| Surface Finish | Excellent (Ra 3.2 - 6.3) | Poor (Ra 12.5 - 25) | Superior (Ra 0.8 - 1.6) |
| Material Waste | Very low | Moderate | Very high |
Does as-cast accuracy eliminate the need for machining?
Many buyers assume a precision casting process means they receive parts with zero need for machining. Then, the parts arrive, they assemble them, and the valves leak under pressure. The reality is that "near-net shape" does not mean "ready to assemble" for high-pressure fluid equipment.

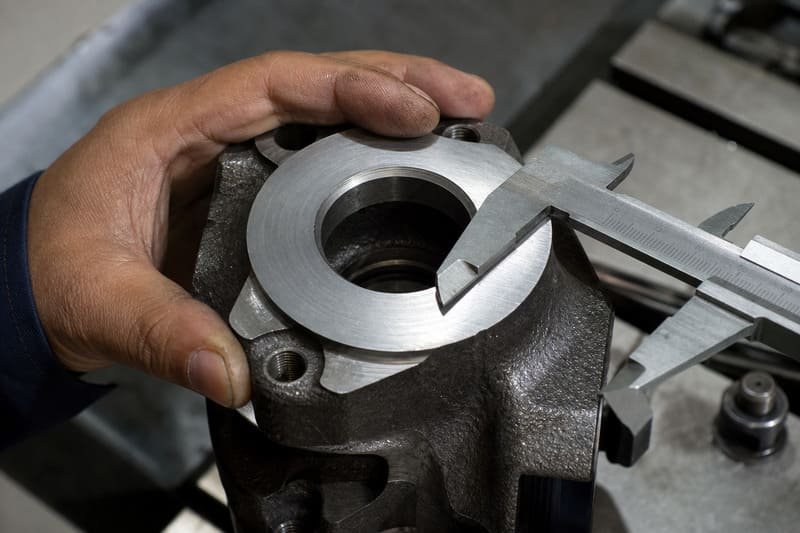

No, investment casting does not eliminate all machining. While the process provides excellent general tolerances, critical functional areas like sealing faces, mating surfaces, bearing bores, and tapped threads require secondary CNC machining[5] to achieve the strict dimensional and geometric requirements necessary for fluid handling.
Separating Cast Features from Machined Features
When I review a customer's drawing, I immediately separate the part into two categories: what we will cast, and what we will machine. Investment casting is fantastic for the external housing, structural ribs, and internal fluid paths. However, it will never be accurate enough for a high-pressure O-ring groove.
Buyers should expect to machine the following features:
- Flange faces: These must be perfectly flat to seal against gaskets.
- Bearing bores: Shafts require extremely tight tolerances to prevent vibration.
- Threaded connections: Internal and external threads must be cut or tapped after casting.
- Valve seats: These surfaces require precision grinding or turning to prevent fluid bypass.
Planning the Machining Allowance
During our Design for Manufacturability (DFM) analysis, we add a "machining allowance" to the CAD model. Usually, we add 1.5mm to 2.5mm of extra metal to the critical sealing faces on the casting mold.[6] This extra material ensures that when our CNC machine cuts the surface, the cutting tool has enough metal to bite into, leaving a perfectly clean, flat finish without any raw cast surface remaining.
OEM engineers must clearly mark their datum structures and critical tolerances on the 2D drawing. We need to know exactly how the part fits into your final assembly so we can design the proper CNC holding fixtures.

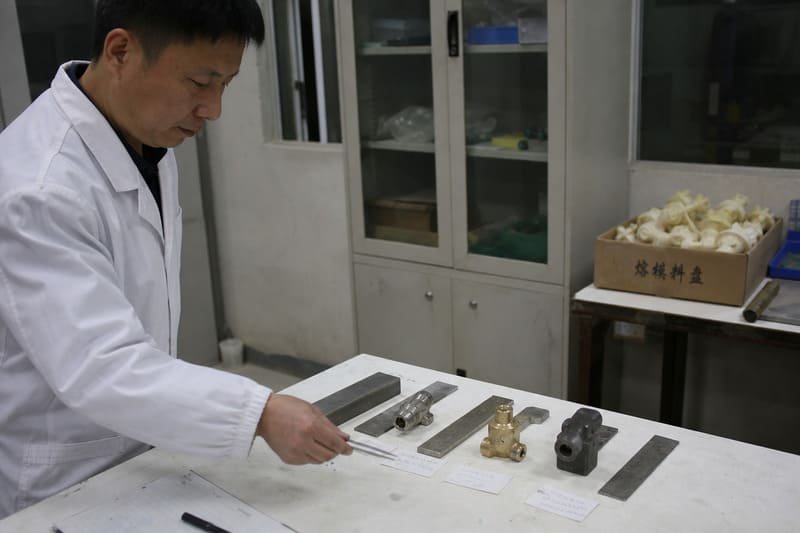

How do materials impact investment casting for pumps and valves?
Selecting a material grade from a dropdown menu is easy, but verifying its performance in the field is difficult. If the chosen alloy cannot handle the corrosive media or system pressure, the entire piping system will fail, regardless of how well the part was manufactured.
Material selection heavily impacts investment casting for pumps and valves by dictating the alloy's flowability during pouring and its ultimate resistance to corrosion, pressure, and temperature. Material grade is just a starting input; actual suitability depends on the buyer verifying operating media, service conditions, and specific industry standards.
Matching the Alloy to the Environment
Often, a procurement manager will send me an RFQ asking for "stainless steel valve bodies." My first question is always: What is the fluid, and what is the maximum operating pressure?
We are a manufacturing partner, not a pump system designer. We can control the chemistry of the metal melt, but the customer must verify that the material suits their application. For example, standard 304 stainless steel handles fresh water beautifully, but it will pit and corrode quickly in a high-chloride seawater environment.[7]
Common Investment Casting Alloys
Buyers frequently evaluate these materials for fluid handling projects:
| Material Type | Common Grades | Typical Applications |
|---|---|---|
| Austenitic Stainless | 304 (CF8), 316 (CF8M) | Water pumps, food-grade valves, chemical lines |
| Martensitic Stainless | 410 (CA15), 420 | High-wear impellers, high-pressure pump casings |
| Carbon Steel | WCB, WCC | Oil and gas pipelines, low-corrosion environments |
| Duplex Stainless | 2205 (CD3MN) | Offshore platforms, highly corrosive media, desalination |
Quality Control and Certification
Treat material grade as a specification that requires proof. We use a spectrometer to analyze the chemical composition of every batch of liquid metal before we pour it into the molds. Buyers should always ask for material test reports (MTRs) to verify the chemical composition and mechanical properties.[8] Furthermore, buyers must ensure the selected material standard (like ASTM A351) complies with their regional pressure equipment directives.

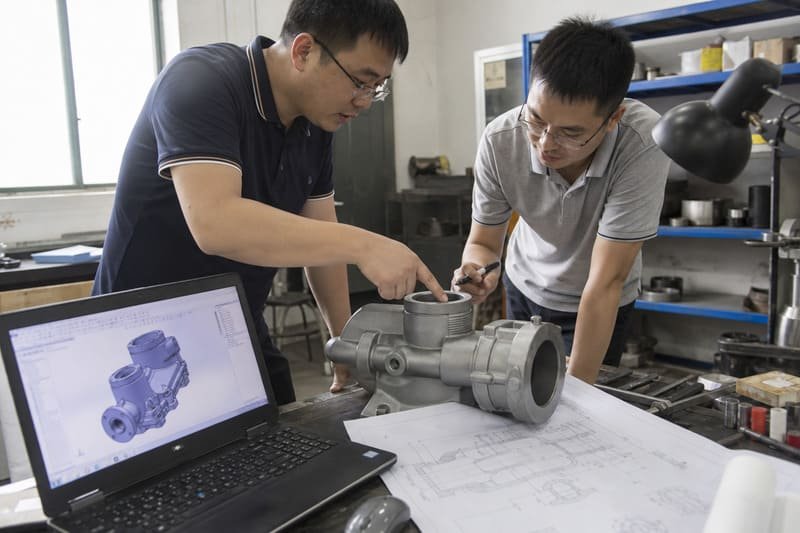

When should you avoid investment casting for pumps and valves?
It is tempting for engineers to use one manufacturing process for every metal component. But forcing a massive, heavy industrial gate valve into an investment casting facility will result in huge tooling costs, warped wax patterns, and technical failures.
You should avoid investment casting for pumps and valves when the component is excessively large or heavy, when production volumes are extremely low, or when the geometry is simple enough for standard CNC machining. In these cases, sand casting or direct machining offers much lower manufacturing risks and better cost efficiency.
Size and Weight Limitations
Investment casting is not magic; it has physical limits. The process relies on wax patterns. If a pump casing is too large or heavy, the wax pattern will sag and warp under its own weight before it even reaches the ceramic shelling room. Generally, we recommend investment casting for parts weighing between 0.1 kg and 30 kg.[9] For parts weighing hundreds of kilograms, resin sand casting is the structurally and economically superior choice.
Production Volume Constraints
Tooling amortization is a major factor for sourcing engineers. We have to machine an aluminum mold to inject the wax patterns. I always tell clients: if you only need five pieces a year, and the design is a relatively simple block with some cross-drilled holes, you should not pay for a custom wax injection mold. You should machine those five parts directly from billet. Investment casting makes financial sense when volumes reach hundreds or thousands of pieces per year[10], where the savings in raw material and machining time offset the initial tooling cost.
Geometry Simplicity
If a valve component is purely rotational—like a simple cylindrical stem or a standard threaded plug—do not cast it. Lathes produce rotational parts much faster, cheaper, and with tighter tolerances than any casting process. We reserve casting for parts that have organic curves, internal cavities, and complex intersecting volumes.
Frequently Asked Questions
What tolerances can be achieved with investment casting?
General linear tolerances for investment casting usually follow the ISO 8062 DCTG 4 to 6 standards. For a 50mm dimension, you can expect an accuracy of about ±0.4mm.[11] However, tight tolerances for bearing housings or seals always require secondary CNC machining.
Can you cast internal threads in valve bodies?
While very coarse threads can technically be cast, we strongly advise against it for fluid handling equipment. Internal threads should always be drilled and tapped using CNC machines after casting to ensure precision and leak-free sealing.
How do you verify the quality of pressure-bearing castings?
We use visual inspection, dimensional checks, and material chemical analysis as our standard procedures. For critical high-pressure applications, we highly recommend adding Non-Destructive Testing (NDT), such as X-ray or liquid penetrant inspection, to check for hidden internal porosity.[12]
What is the typical lead time for a new pump casting?
New projects usually require 4 to 6 weeks for tooling design, mold manufacturing, and initial sample production. Once the customer approves the samples, standard batch production typically takes another 4 to 6 weeks, depending on order volume and machining complexity.
Conclusion
Choosing investment casting for pumps and valves requires a careful balance between component geometry, material specifications, and necessary downstream processing. While the process excels at creating complex internal fluid channels and reducing material waste, buyers must remember that critical sealing faces and precise mating surfaces will always require dedicated CNC machining. Furthermore, procurement teams must ensure that their chosen material grade matches the specific media and pressure requirements of the end application.
If you are evaluating a new pump impeller or valve housing project, our engineering team can help. Send us your 3D models and 2D drawings, and we will provide a comprehensive DFM analysis to determine if investment casting is the right manufacturing method for your components.
Engineering scope: This article provides general process-selection guidance. The buyer or system designer must confirm material suitability, pressure and temperature ratings, applicable standards and acceptance criteria. Tianluping confirms manufacturing feasibility only against the controlled drawing and agreed inspection scope.
